This article reviews the steps to enable and use Internal PIN pad verification on the EyeAllow & Access200. Currently, external PIN pads are not supported.
Why Use Internal PIN Pad?
Enabling and using the internal PIN pad on the EyeAllow & Access200 increases the security from single-factor authentication to dual-factor verification. With PIN enabled, the reader is confirming who you are (iris) and what you know (PIN) at a 1:1 match. PINs must be at least 4 digits and can be up to 16 digits in length.
Note: With PIN enabled on a reader, any user without an assigned PIN will not be recognized by that reader.
Add a PIN to a User

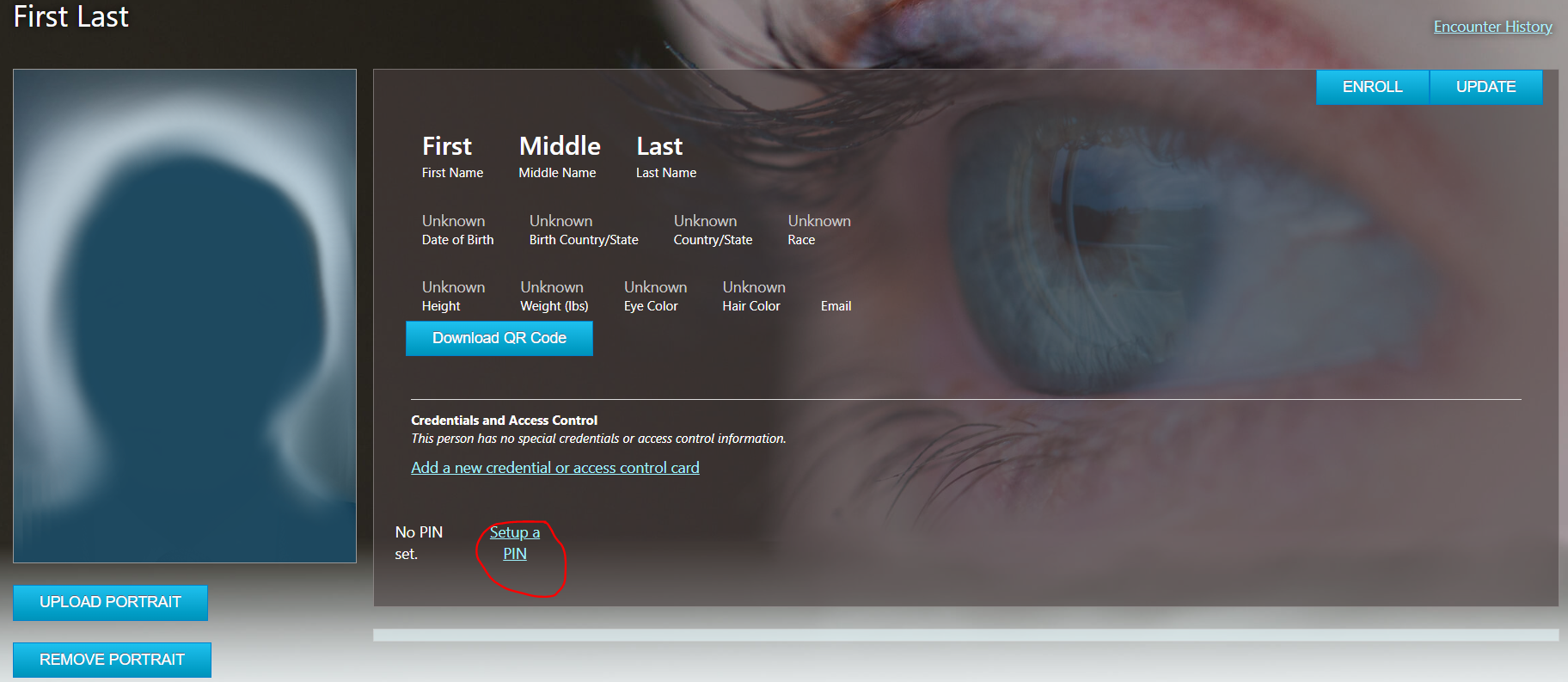

Within the IDS, select the desired user. In the Credentials and Access Control section, click Setup a PIN:

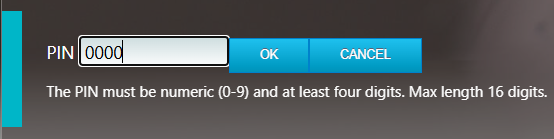

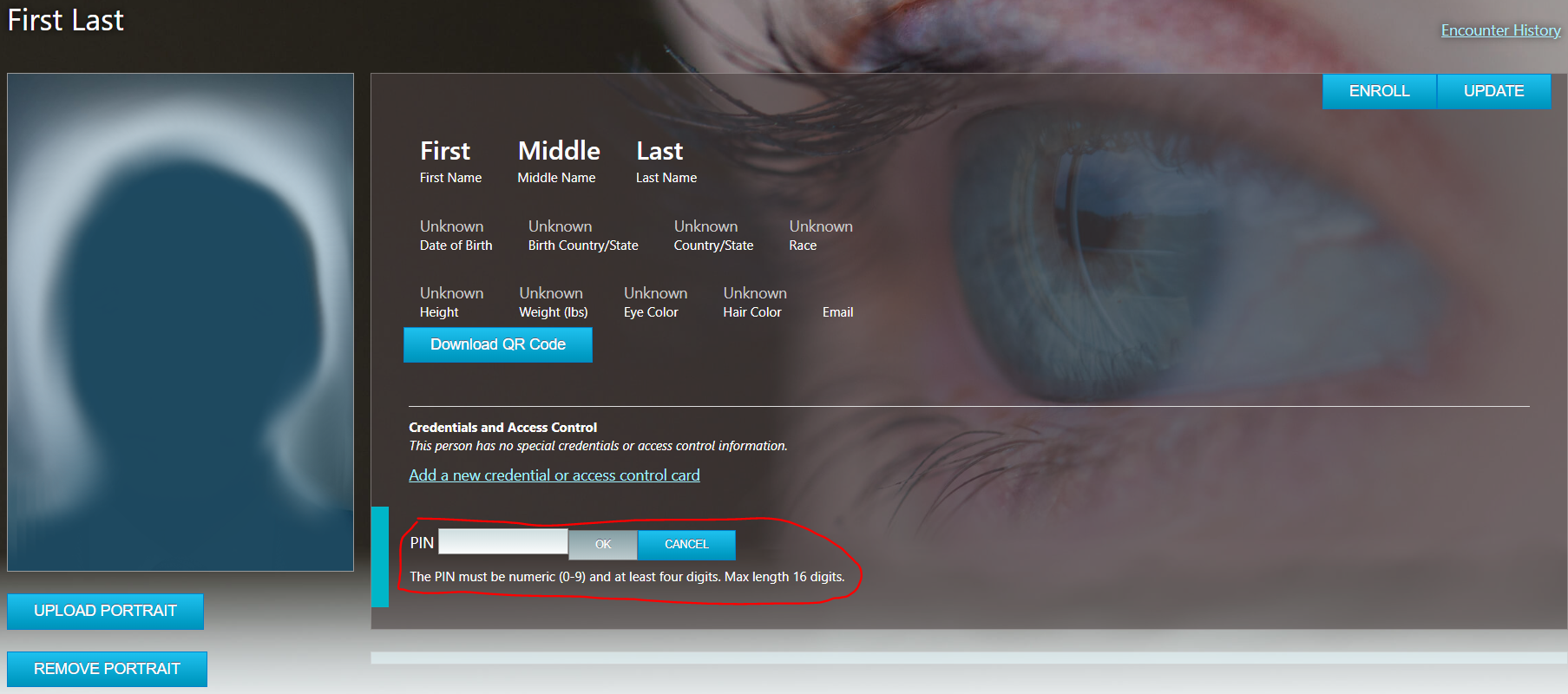

Enter the PIN and click OK:

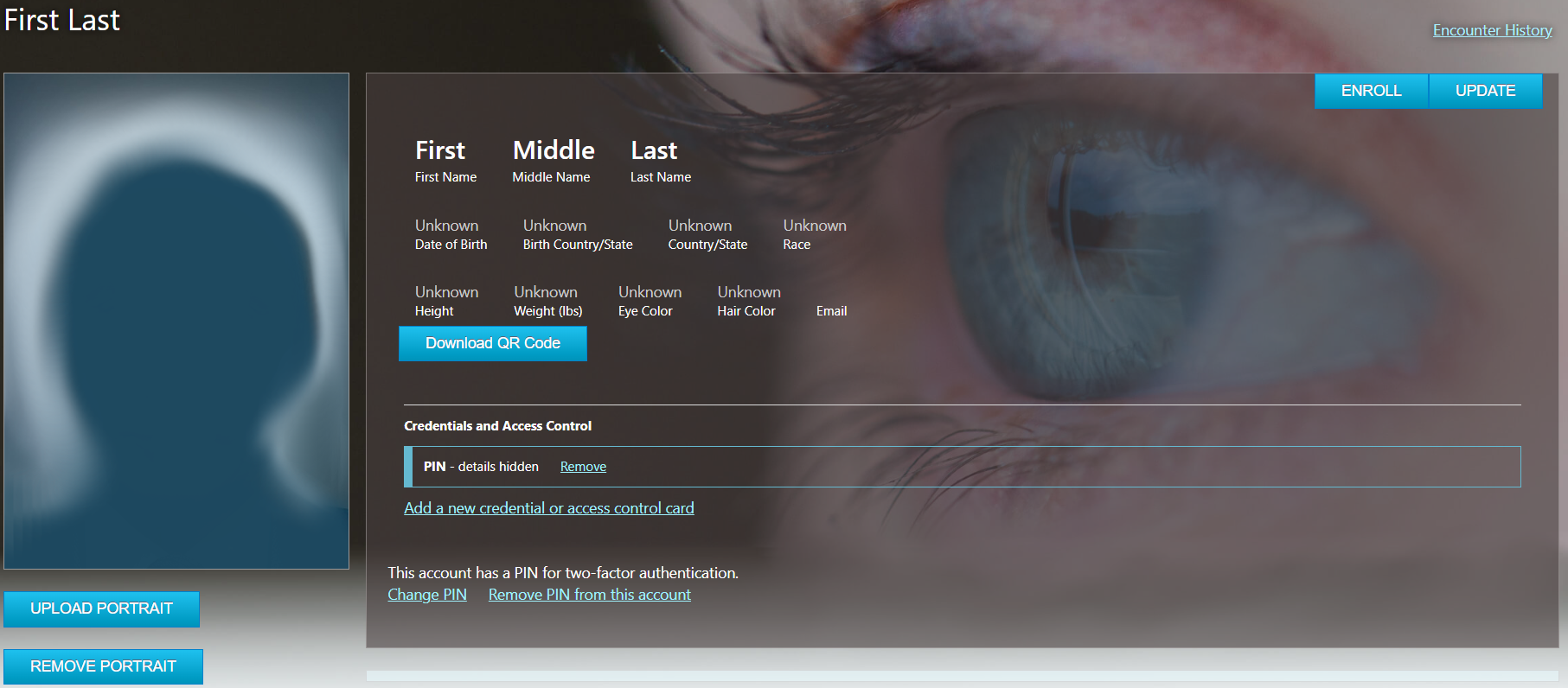

PIN details are saved and hidden. This user can now be verified on a PIN-enabled edge device.
Note: PINs are unique and internal to the Identity Server. They are not synced with any external Access Control Solution or panel.
Enable PIN Pad on the EyeAllow & Access200

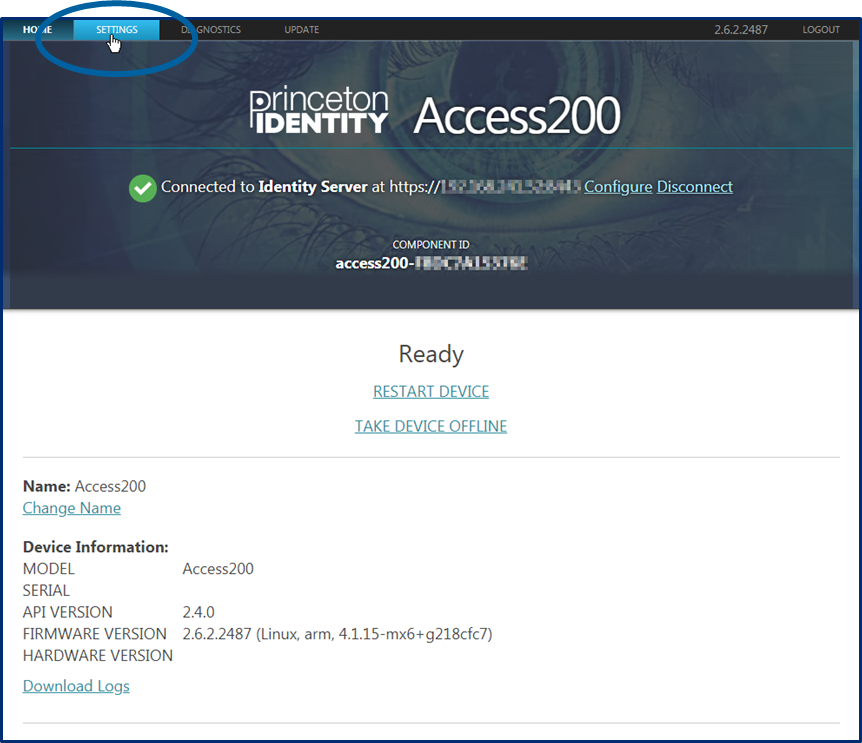

From the device's webpage, go into the SETTINGS tab

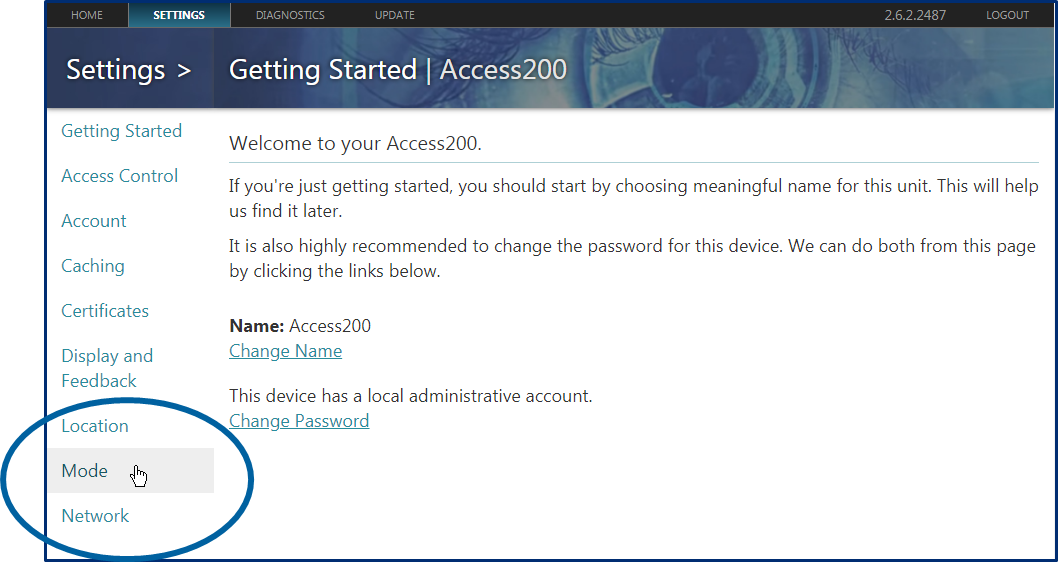

On the left panel of the Settings tab, click Mode

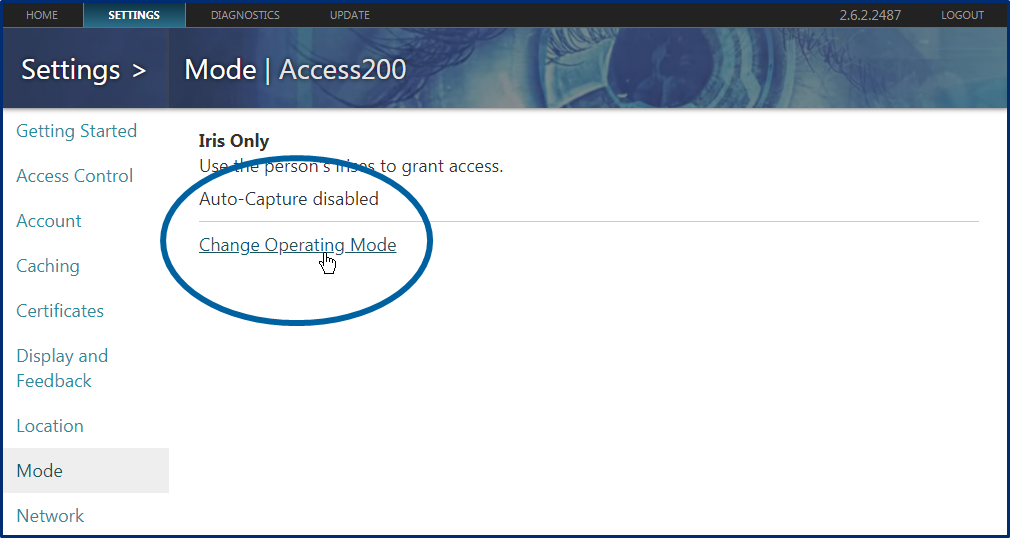

We can now see the current operating mode of this Access200. Click Change Operating Mode to see other available modes

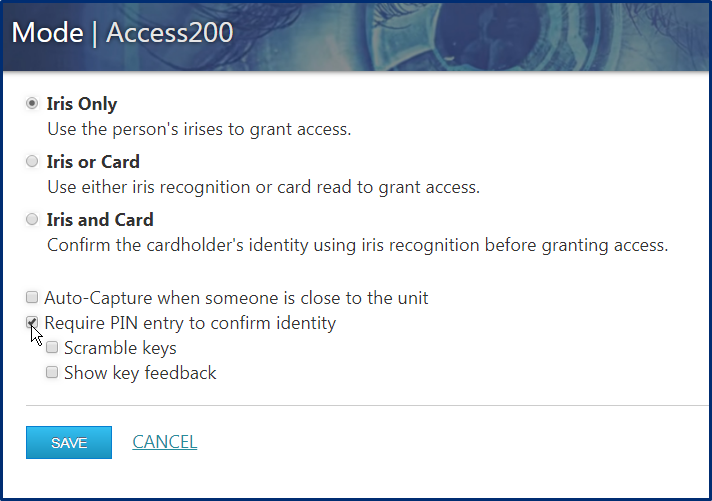

The available modes are discussed in another article. To enable PIN, click the checkbox next to Require PIN entry to confirm identity, then click SAVE

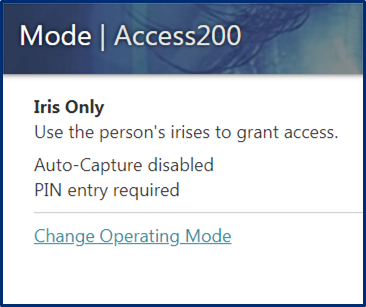

The PIN setting will be displayed in the current operating mode section
Note: By default, the PIN pad is displayed as a standard number pad.
Additional Settings:
Scramble Keys will display the number pad in a different order with each encounter
Selecting Show key feedback will show a counter of how many digits have been input already
