Capture Volume

The Access500 is designed for rapid, high-quality enrollment. The capture volume of the device depends on the angle that the unit is mounted. Images below describe the capture volume that the Access500 is designed to work for.

Capture volume for 90-degree mount at 138 cm (54.3 inch) mount height

Capture volume for 60-degree mount at 98 cm (38.5 inch) mount height

Enrolling a new person

To be able to enroll people to the Identity Server (IDS), you must be a user with "admin" or "enroller" permissions.

Log in to the IDS.

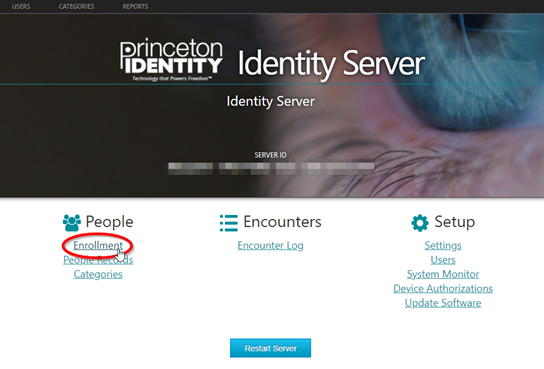

From the home page click on the "Enrollment" link.

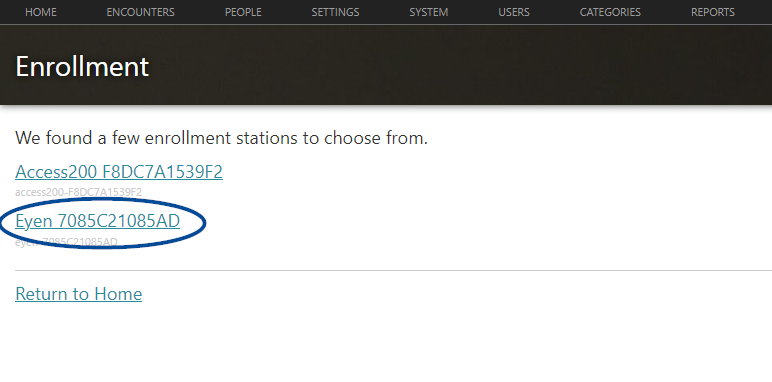

If prompted to select a device from the list, select the one labeled "Eyen" or "Access500" and click on the link:

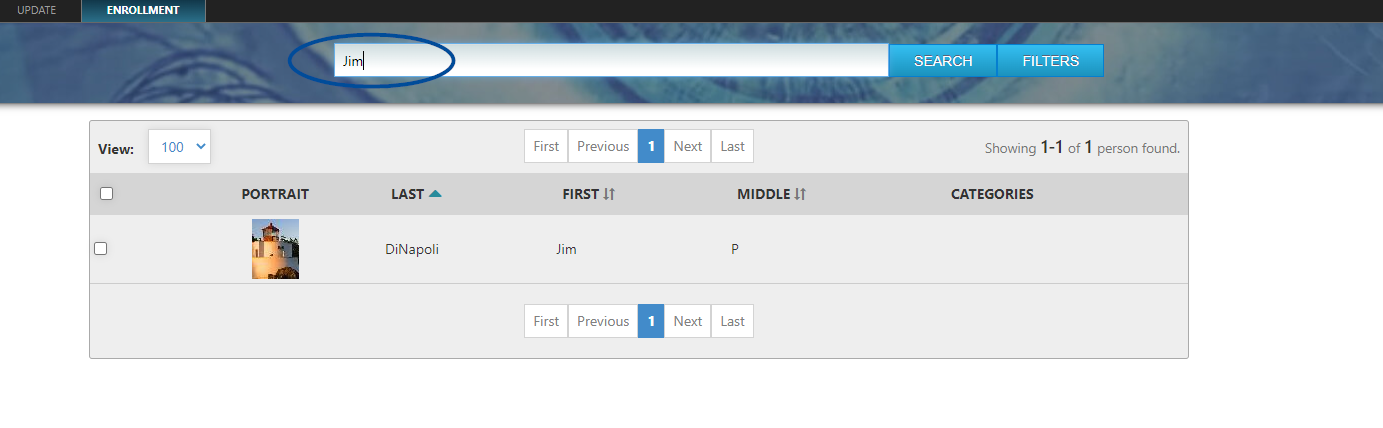

On the subsequent page, use the search bar at the top to search for the person who will be enrolled.

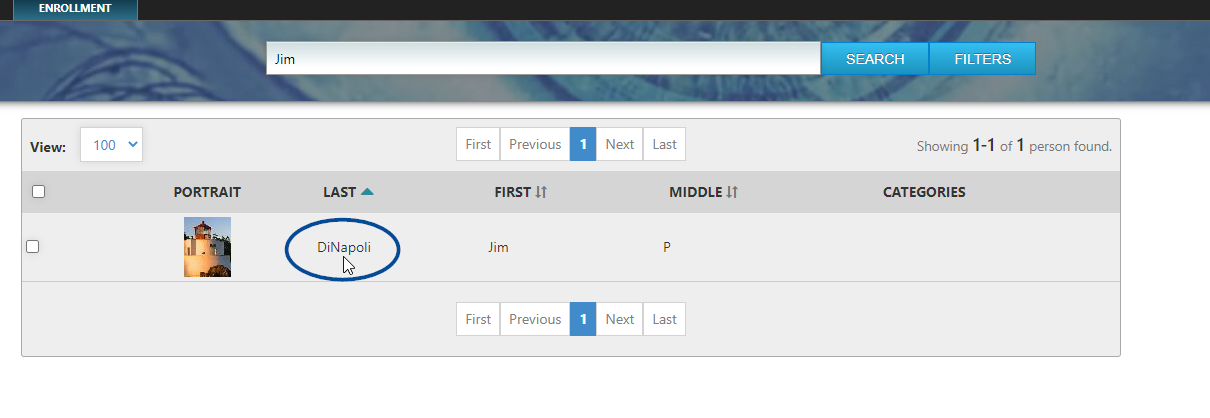

Then click on their last name to be directed to their profile page.

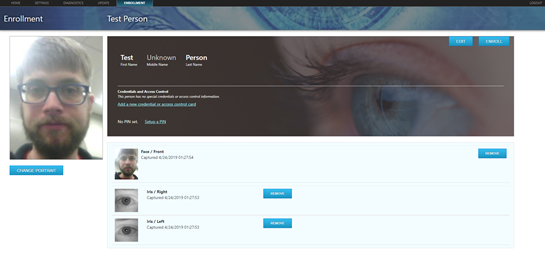

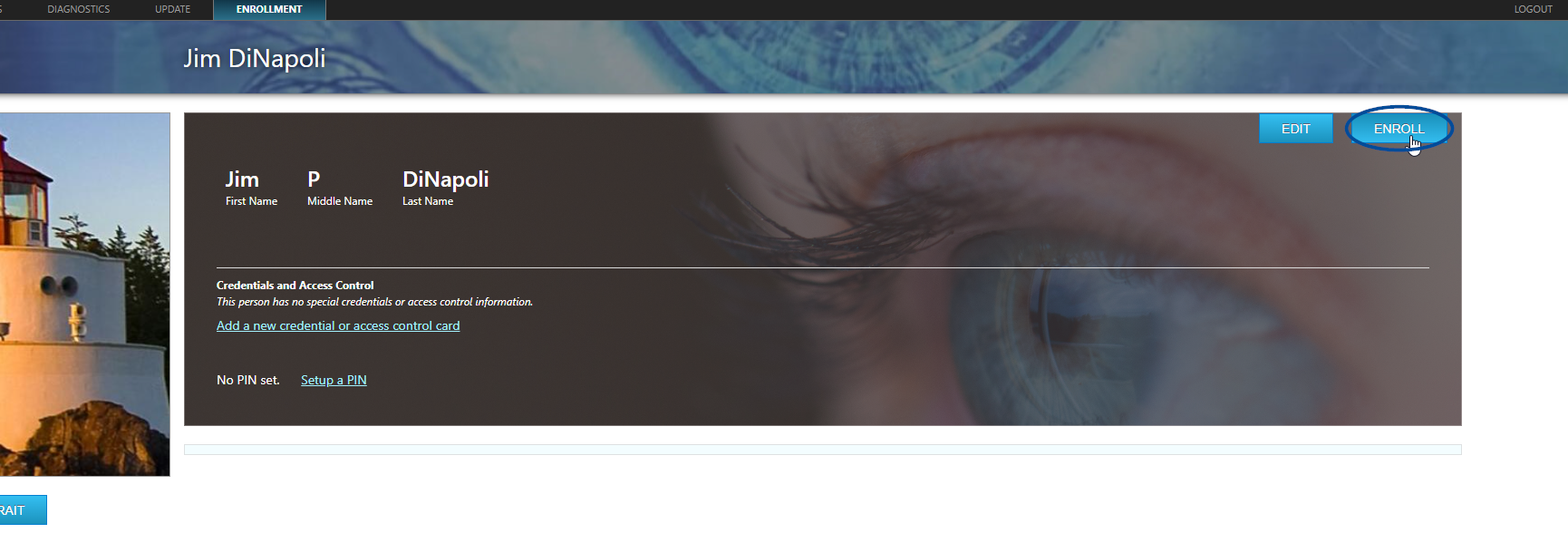

On the profile page, click on the "Enroll" button on the right-hand side.

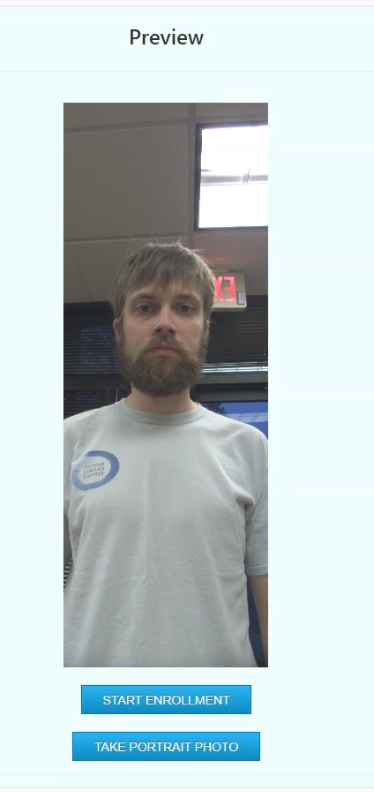

You will be directed to the "Add Biometrics" screen. Use the device preview on the left-hand side of the screen to align the person to the center of the capture volume. Their face should be centered and occupy between 1/3rd and 1/2 of the width of the preview.

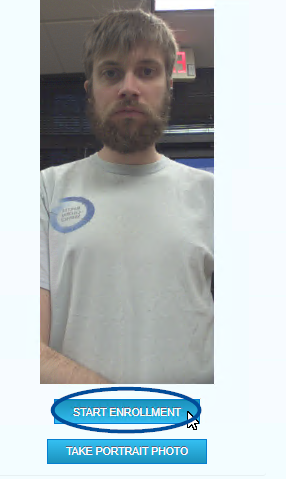

When the person is properly aligned, click on the "START ENROLLMENT" button.

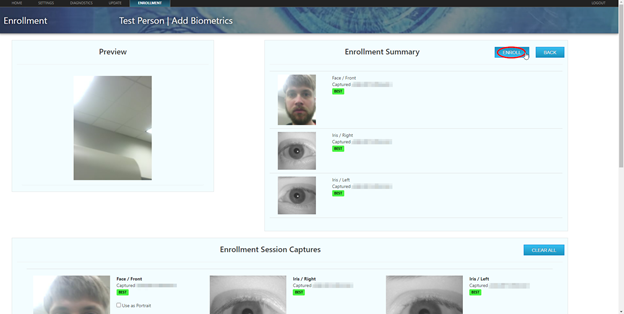

Wait for the device to complete its capture. When the capture is complete, you will see biometrics appear on the web page on the right-hand side and the bottom.
Click on “ENROLL” in the “Enrollment Summary” section.

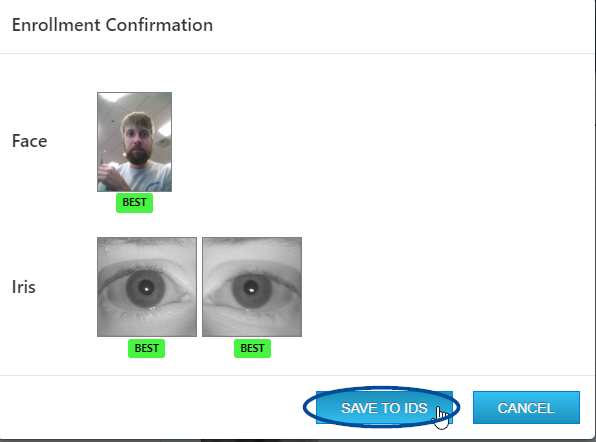

On the “Enrollment Confirmation” screen, the person's captured biometrics will be displayed. Click "SAVE". The user’s chosen Portrait will display, as well as the captured biometrics which will be enrolled. Click “SAVE TO IDS”.
