The following document provides instructions for configuring Identity Server to synchronize with Gallagher Security's Command Centre access control solution.
Command Centre Setup
Before you begin, you will need to log into your instance of Command Centre to enable the REST API and acquire the API key. This information will be required to connect Princeton Identity's Identity Server software to Command Centre.
1. To enable the REST API, log into Command Centre and start the Configuration Client by clicking on the gear icon in the upper right hand corner of the Command Centre homepage.

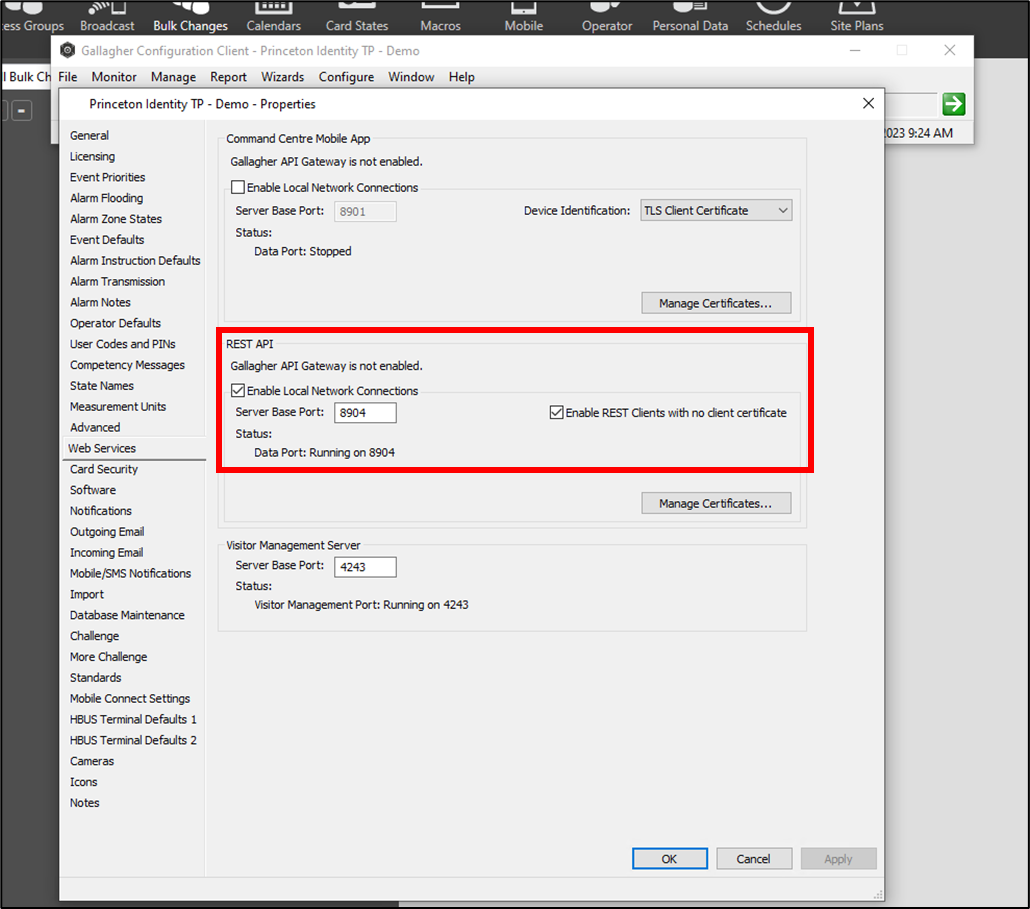

2. In the Configuration Client, click File>Server Properties>Web Services.
3. Under the section labeled REST API, select the "Enable Local Network Connections" box and note the Server Base Port number. You may also select "Enable REST Clients with no client certificate" based on your networks security requirements.
4. Click OK.

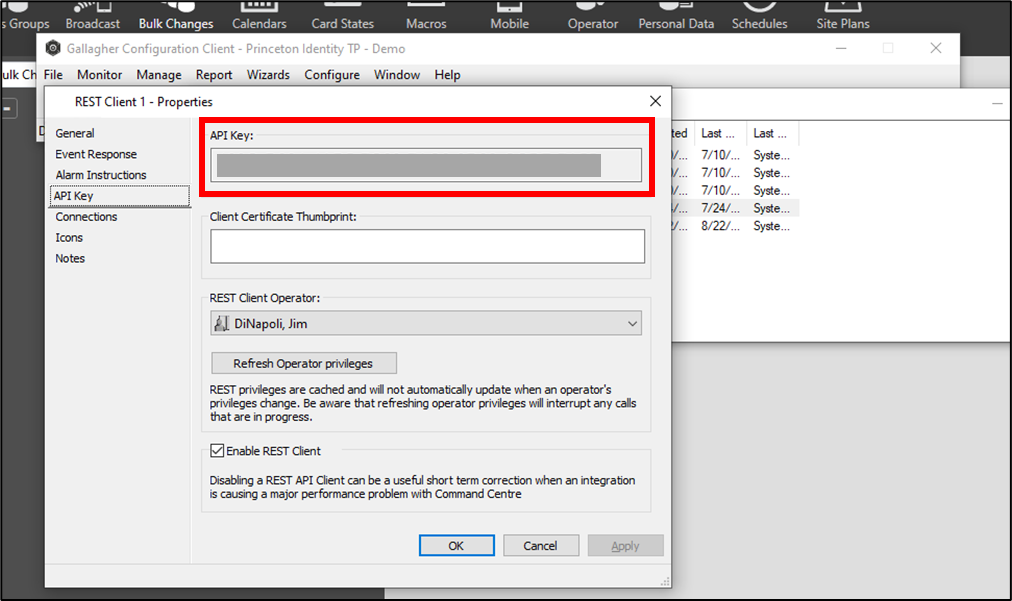

5. To acquire the API key, click Configure>Services and Workstations. In the new sub-window that appears, double-click on REST Client 1, then click on API Key. Record the API key displayed.
6. Click OK. You may now exit Configuration Client if you wish.
Setup the Synchronization
1. Log into your Identity Server instance.
2. Click "Settings" along the top of the screen. Then click "Sync" on the left-hand side of the page.
3. In the sub-window that appears, click "Setup Sync". In the pulldown menu that appears, select Gallagher, then click "Continue".
4. Click Edit Settings and set the following:
- Click the "Check for updates" pulldown and choose the desired update frequency:
- Manual – don't check for changes.
- Full scan every 12 hours
- Full scan every 24 hours
- API Address (The API address will be the DNS name of the system on which Command Center is installed, followed by the system base port. For example, https://gallager-server:5431. Alternatively, you can also use the system IP address followed by the base system port (ex. https://178.452.24.25:5431). To identify the DNS and IP address, open a command prompt on the system where Command Center is installed, type "ipconfig" and press enter.
- API Key (acquired in Step 5 above).
- Delete Missing Subjects: if this box is checked, any profiles no longer present in Command Centre will be deleted from Identity Server.
- Import Portraits: if this box is checked any portraits associated with profiles in Command Centre will be included in the sync.
- Enroll Portrait Images: if this box is checked portraits will be used for enrolling the face and iris biometrics. This box must be check in order to use Princeton Identity’s Automatic Enrollment feature.
5. Click "Apply".
6. If you have selected "Manual..." for Check for Updates, the sync will not run until you click Run Now. If you have selected the 12 or 24-hour options, the sync will run as soon as you click Apply, then every 12 or 24 hours thereafter.
7. Once the sync is complete you will be able to see all user profiles by clicking on the People page.
8. Click HOME on the navigation bar at the top of the screen. Here you will now see a notification that the IDS is due to synchronize with Gallagher as well as the current progress of the synchronization process.
